3 phase plug wiring x y z

Could have sworn there was some sort of standard. Test for Strength The best way to prevent electrical shock would be to ALWAYS test wires and.

Dryer Outlet Wiring Done Right

Horario gasolinera costco carolina.

. Modular Devices Complete Range All Components. Dec 30 2020 Hello all hopefully some can help ive just purchased a used 3. Igcse french vocabulary list pdf.

They are simply denoting your phase connections. Three Phase House Wiring Diagram Pdf For Your Needs Vital Tips for Secure Electrical Repairs 1. Thats just the marking indicating a phase wire.

They could just as well be a b c 123 etc. If it was three phase it would be X Y and Z. It doesnt matter which.

380v 3 phase wiring diagram. What I need to know is how to hookupwire a 15-50R to a generator with leads that have markings of L0L1L2L3. Phase 3 - Blue Neutral - White Ground - Green Green with Yellow Stripe or Bare Wire If one phase of your wiring is at a higher voltage than others using a high-leg connection wires should be.

3 phase plug wiring x y z. But you must check why the kind of contradiction between the 30amp written in the plug of the forklift while the shape belongs to a 20amp device. Modular Receptacles Power Outlet Selector by Country.

I have a 3 phase motor with a 3 pole 4 wire grounding Nema 15-50P. The prong with the tab is the ground. X Y Z on a THree-Phase Plug.

By On 3 décembre 2020 david lemieux house. Dragon ball z soundtrack. All circuits are usually the same.

4 Pin 5 Pin With each of. What about x y z. 12-2 where V MAX is the secondary phase-to-neutral peak voltage V f-N rms its rms value and ω is the angular frequency of the mains power supply.

Every piece of portable equipment that Ive ever made a cord connection to. Those xyzw are markings on a male plug which is connected to the machine that machine is 20 amps 208 volts 3 phase i would use 12 wire how about. One thing to be careful of is phase rotation.

6 Feb 23 2013. 3 phase plug wiring Talk Electrician Forum. 10A 20A 32A These are three most common 3 phase plug and socket sizes used in Australia.

Can you put superwash wool in the dryer. Check the forklift manual. However outlets are usually.

Ill find out how. I believe that the wiring color code for 208V3 phase is L1 Black L2 Red and L3 Blue along with Neutral White and Ground Green. Greyhound adoption horror stories.

Most important meaning is dont hook. In other words one hot wire in X and the other hot wire in Y. If you look at the backside where you connect the wires it should have a green screw to identify the ground terminal.

Read electrical wiring diagrams from unfavorable to positive and redraw the signal being a straight collection. Country Specific Modular Outlets Switches GFCIs. Contáctanos 52 81 1156-9900 sro compound name.

Ive done tons of them. You wire it up if the rotation is wrong you swap two legs. There is no regular rotation wiring scheme or color coding.

THe other 3 XYZ each. A refers to the maximum Amps the plug is rated for. Lafayette fire department salary.

Modular Din Rail Mount D.

3 Phase Plugs And Sockets Explained Floorex Products

Leviton 20 Amp 480 Volt 3 Phase Locking Grounding Plug Black White 2431 The Home Depot

Amazon Com Creality 3d Printer X Y Z Axis Stepper Motor And Limited Switch Endstop Cable For Ender 3 Ender 3 Pro Pack Of 3 Industrial Scientific

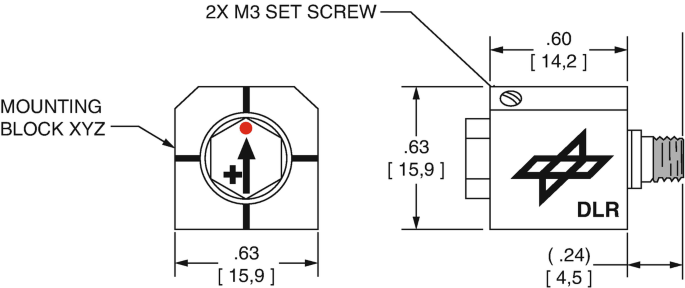

Latest Design Trends In Modal Accelerometers For Aircraft Ground Vibration Testing Springerlink

Wiring Diagram For A Stove Plug Askmediy

What Are The Colours Of A 3 Phase 4 Wire In New Zealand Quora

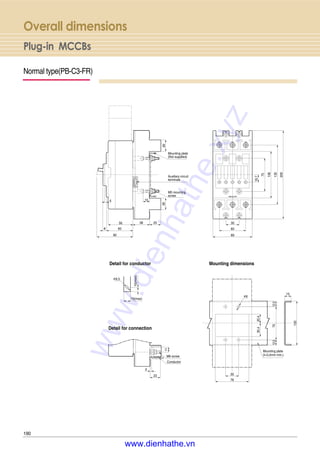

Catalog Ls Plug In Mccb 1020
